Tractor Powered Sprayer

Tractor Powered Sprayer

Name : Gurmeet Singh Bhupal

District & State :  Hanumangarh, Rajasthan

Category : Engineering

Award :   National

Award Function :   10th National Grassroots Innovation Awards

Award Year : 2019

Gurmeet (45)is a farmer and a fabricator. He dropped out of school after class 3rd to help his family in farming. He interest in machine fabrication led him to mechanize various processes for crop cultivation in his farm.
The general practice incotton farms is that the labours have to hold the spray boom of the tractor mounted sprayersfor spraying pesticides. This makes spraying slow and tiring for the labourers. Gurmeet conceptualized a drawing of sprayer using afour bar mechanism so that more area could be covered and successfully developed a prototype in 2016.

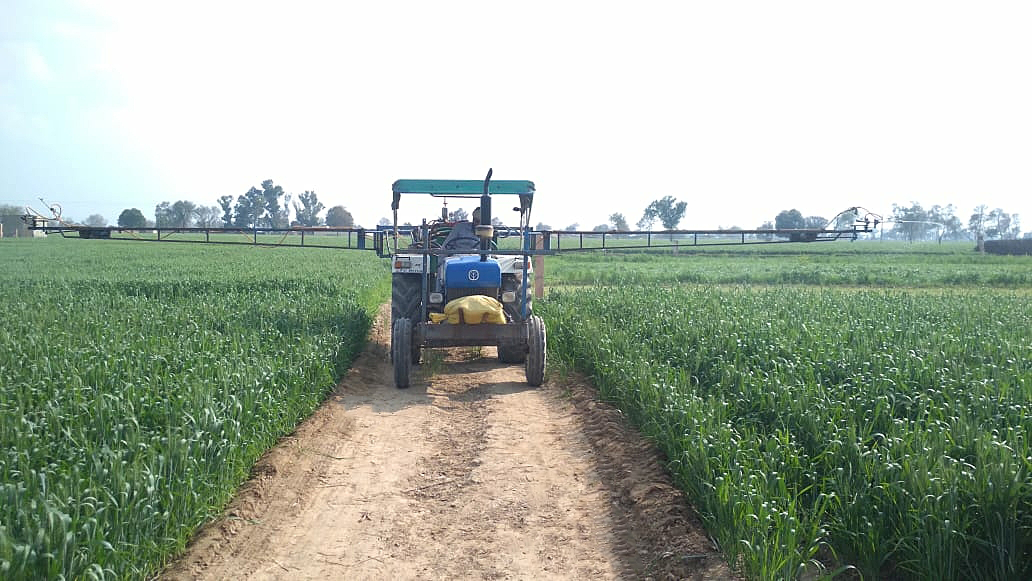

He developed a tractor mounted PTO powered machine to spray over crops of small height (mainly cotton). The sprayer has two semi-revolving guns,which continuously spray liquid with an automatic semi-circular movement using four bar mechanism and two independent hydraulic controllable arms.Its working width is 23m, spraying height is 2.1m, coverage area is 5 ha/h and fuel consumption is 2 lit/h at a working speed of 2-3 kmph. Themanufacturing of the present model costs about Rs. 60,000 /-.
