The Multipurpose Processing Machine
volunteer
Dharamveer Kamboj
Yamunanagar, Haryana

7th National Grassroots Innovation - 2013

 Innovator Profile

 Catalog

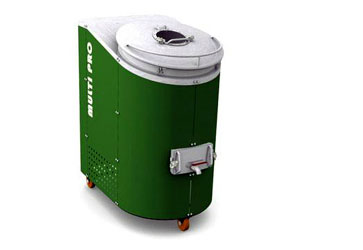

Multi Purpose Processing machine is a portable machine, which works on a single phase motor and is useful in processing of various fruits, herbs and seeds. It also works as big pressure cooker with temperature control and auto cut-off facility. It also offers condensation mechanism, which helps in extraction of essence and extracts from flowers and medicinal plants.

The machine is a cylindrical container made of food grade stainless steel having an opening (with lid) at the top to feed the herbs and an outlet at the bottom to collect the residue

The machine has an electric motor to drive the central shaft the power of the motor varies depending on the capacity of the machine. Gauges for monitoring the temperature and pressure are provided so that they can be controlled for the processing of certain products. The machine is also equipped with an oil jacket outside the main chamber to prevent direct heating of the herbs. Its portability makes it most suitable for farm processing, thereby producing farm fresh products and reducing problems associated with transportation and stocking.

The machine is unique because it has the capacity to process a wide variety of products without breaking the seeds of the fruit or vegetable. This machine can be used for processing Aloe vera (making juice, hair gel, face wash, shampoo, hand wash, extract, powder), mango, (chutney, jam), amla (juice, powder, extract, hair oil, candy, sweets laddoo), tulsi, aswagandha, satavar, herbs (juice, extracts), flowers like rose, chameli, lavender etc. (extract and essence).

Innovator has been awarded in Fifth Biennial Award Function of National Innovation Foundation and supported under MVIF scheme of NIF. Apart from this, innovator has also received various state and national level awards to his credit. Until now, more than

 Indian Patent Applied for (No: 367/DEL/2008)

  • Power: Singe Phase
  • Electricity consumption : 1.5 units/ hour
  • Weight of machine: 125 kg
  • Motor speed: 1440 rpm
  • Rotor/Centrifuge speed: 360 rpm
  • Juice extraction capacity: Model 1- 50 Kg / hr and Model 2- 150 kg of fruit juice/hour
  • Two electric heaters; Automatic Temperature Cut-off, Starter panel
  •  Proven Utility of the Machine - can process herbs, flowers vegetables and fruits and many others        products as below

  • Aloe Vera: Herbal Juice, Hair Gel, Face Wash, Shampoo, Hand Wash, Extract, Powder

  • Mango: Juice, Chutney, Jam

  • Amla: Juice, Powder, Extract, Hair Oil, Candy, Sweets, Laddoo.

  • Tulsi, Aswagandha, Satavar, Herbs : Juice, exatracts

  • Flowers like rose, chameli, lavender etc: Extract and essence.

  • Machine can extract pulp, gel, essential oils, essence and juice Machine can also be used to prepare sauce/puree/ketchup/soup/paste/gel

  • Boiling is also facilitated with temperature regulation.

  • It is very good option for income and employment generating opportunities for SHG, rural and tribal people by processing the fruits and selling value added products.

  • It helps in improving the nutrition and in reducing the wastage of fruits, herbs and other perishable items.
