Low Cost Sanitary Napkin Making Machine

Low Cost Sanitary Napkin Making Machine


Name : Mr. Shaikh Afzal

District & State :  Mumbai, Maharashtra

Category : Engineering

Award :

Award Function :

Award Year :

Price :   Rs 2,09,925 /- for all five machines the cost (Ex-factory India) The price does not includes transportation cost, packaging,taxes etc.

Delivery Period : 15 days after confirmed order with 75 per cent of the price as advance payment


Sanitary napkin, a universally needed product, has very low penetration in India and other developing countries, partly due to its high price and partly due to the tradition of using cheaper but unhygienic old cloth piece. As a result they become the host of many infectious diseases. This is due to lack of awareness and economic inability for adopting better precautions like use of good sanitary napkins during menstruation period. Usually different varieties of sanitary napkins are found available in the market but they are very expensive and are not affordable for rural & under-privileged women and girls.

Product:

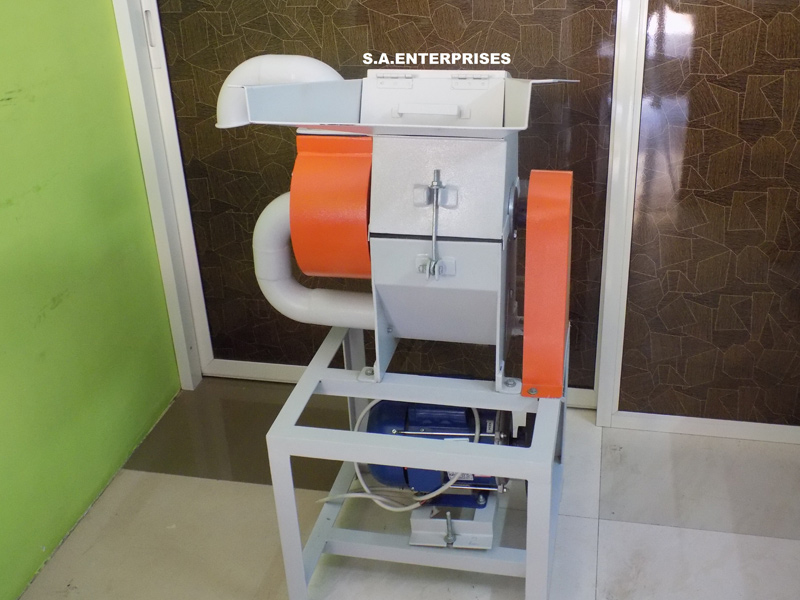

1.Pulverizer

It is used for Pulverizing Pulp or Cotton. It can pulverize 100 kg per hour operated on a 0.5 HP motor. Total manpower for this machine is only 1 single person. It has added advantage over the grinder. There is a difference between pulverizing and grinding. If we pulverize the pulp then it becomes soft but retains its shape in napkin but if we grind it then it cannot retain its shape in a napkin

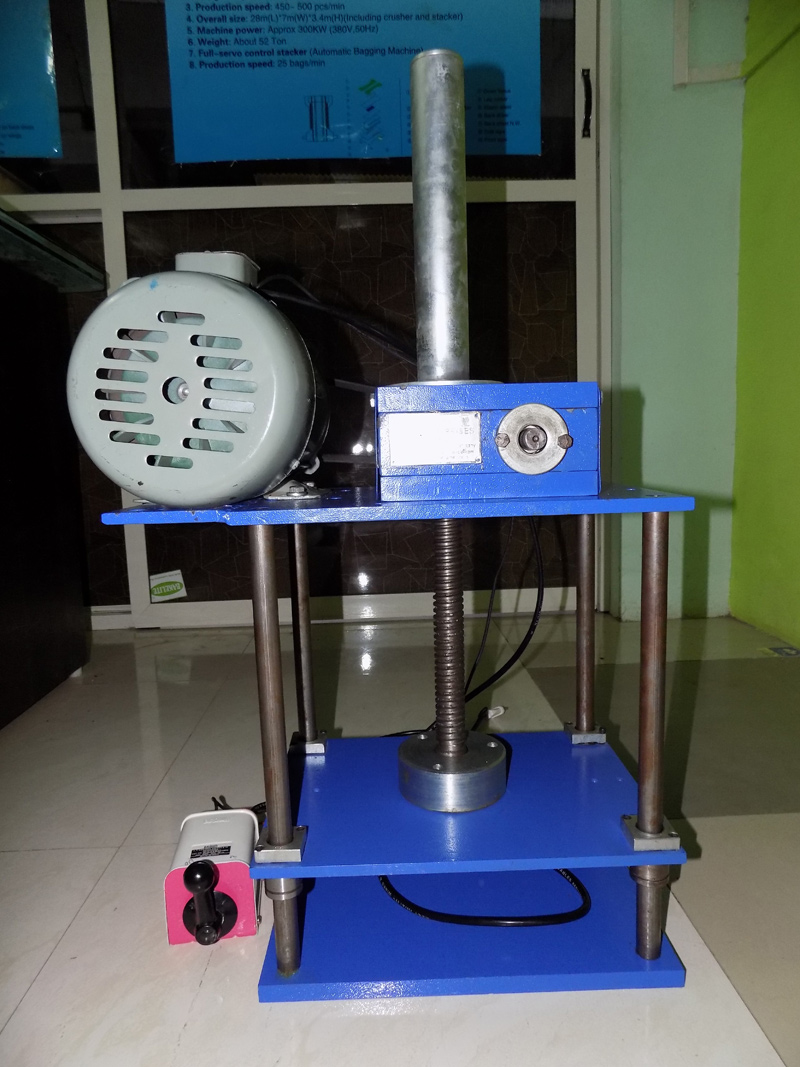

2. Napkin Press Machine:

The napkin pressing machines are available with three powders coated or steel plated dyes that ensure easy operation. These Napkin Pressing machines are easy to fix on the floor or on the table and sufficiently produce minimum 2,500 napkins in 8 hours or 75,000 napkins in 30 days.

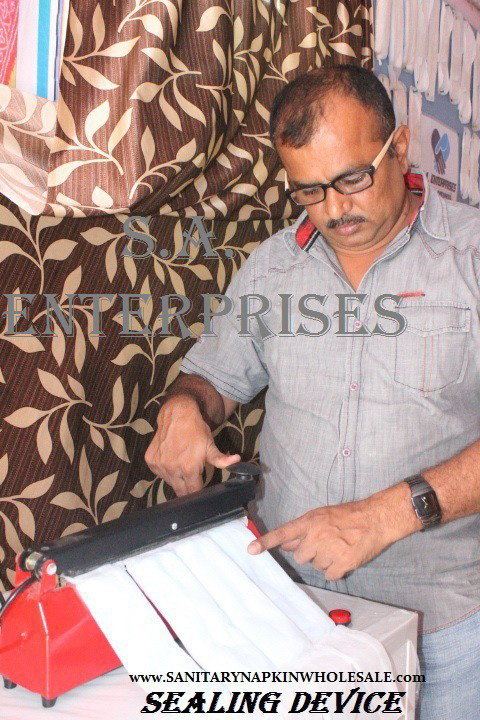

3. Napkin Sealing Machine:

This machine is used to seal the pulp in a fabric. It takes 20 seconds to seal one

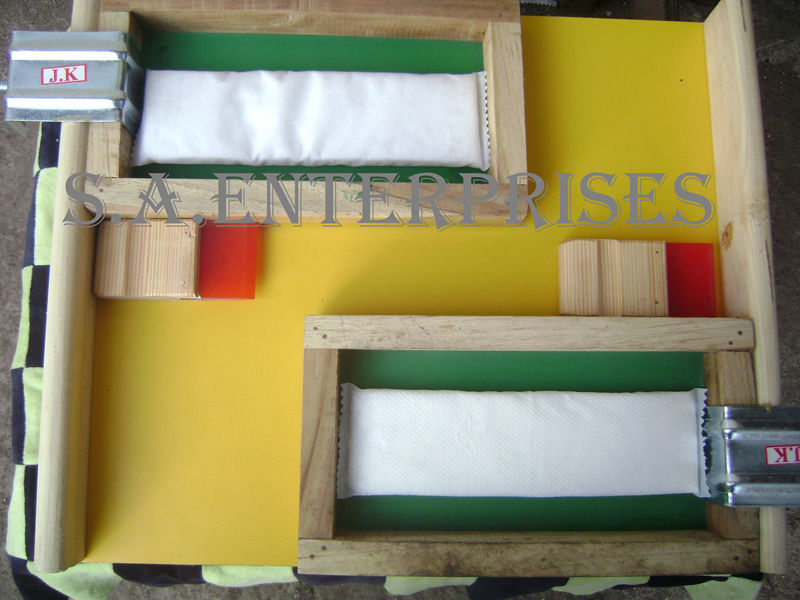

4. Gumming Set:

This Gumming Set is a type manual screen printing this designing of screen is only used for Sanitary Napkin back side Gumming. Total manpower for this machine is only 2 single persons. This gumming manual machine production capacity is 500 Napkins in 40 minutes

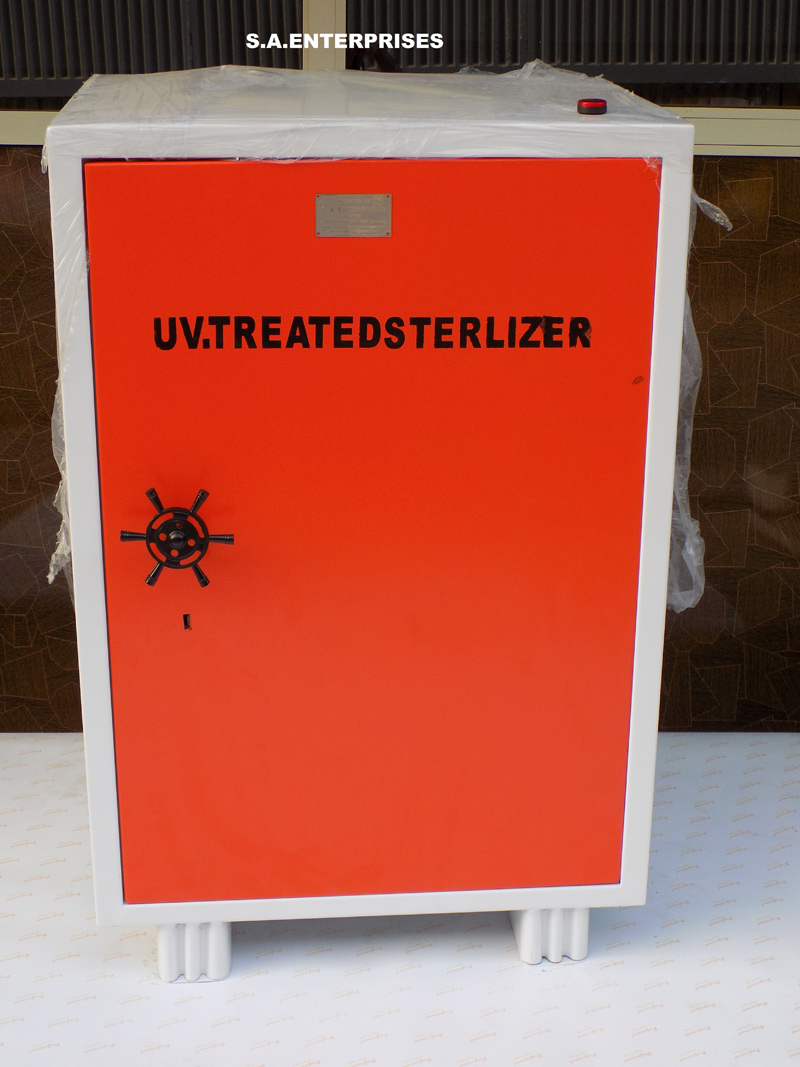

5. UV Treated Sterilizer

This UV Treated Sterilizer is of 18 gauge virgin steel with plastic coated in white color with red LED indicator on the top. There are three UV treated ultra-tubes of 12 inches with 12/24 inches mirror inside of the sterilizer so that the reflection the UV tube should reflect in the full sterilizer inner side. The size of the sterilizer length 35 inches & breadth 24 inches & depth is 25 inches.


Sanitary Napkin making machine consist of 5 units and technical specifications of each unit are as follows :

  • Pulverizer: It is used for Pulverizing Pulp or Cotton. It can pulverize 100 kg per hour operated on a 0.5 hp motor. Total manpower for this machine is only 1 single person
  • Napkin Press Machine: The napkin pressing machines are available with three powders coated or steel plated dyes that ensure easy operation. These Napkin Pressing machines are easy to fix on the floor or on the table and sufficiently produce minimum 2,500 napkins in 8 hours or 75,000 napkins in 30 days
  • Napkin Sealing Machine: This machine is used to seal the pulp in a fabric. It takes 20 seconds to seal one napkin
  • Gumming Set: This Gumming Set is a type manual screen printing this designing of screen is only used for Sanitary Napkin back side Gumming. Total manpower for this machine is only 2 persons. This gumming manual machine production capacity is 500 Napkins in 40 minutes
  • UV Treated Sterilizer: This UV Treated Sterilizer is of 18 gauge virgin steel with plastic coated in white color with red LED indicator on the top. There are three UV treated ultra-tubes of 12 inches with 12/24 inches mirror inside of the sterilizer so that the reflection the UV tube should reflect in the full sterilizer inner side. The size of the sterilizer length 35 inches & breadth 24 inches & depth is 25inches




  • This machine heralds a new revolution in personal hygiene, for women across all sections of society
  • Easy to operate and maintain. Innovator is providing one day training to operate the machine
  • It creates potential perennial revenue stream for small scale entrepreneurs, and self help groups by deploying a self sustaining micro-enterprise model
