Garlic Peeling Machine

Garlic Peeling Machine


Name : M Nagarajan

District & State :  Madurai, Tamil Nadu

Category : Engineering

Award :   Consolation

Award Function :   3rd National Grassroots Innovation Awards

Award Year : 2005

Price :   Model 1: - Rs. 2,85,000/- (ex-factory price + packaging). Model 2: - Rs. 1,85,000/- (ex-factory price + packaging). The price does not include transportation costs, taxes, etc.

Delivery Period : 30 day after confirmed order with 75 per cent of the price as advance payment


M. Nagarajan (45) lives at Usilampatti, a small village 40 km away from Madurai in Tamil Nadu. He has studied up to ninth standard. He is married and has two children. Being the eldest in the family, he supported the education of his younger brothers and sisters and also got them married. He is the sole bread-winner of the family. His dream is to develop such machines related to food processing which are not available in the market. M. Nagarajan has modified a garlicpeeling machine and a lemon cutting machine significantly. These improved machines address the two-fold problem of the pickle industry, namely, inefficiency due to low degree of automation and short supply of labour during peak seasons, which limits the capacity.

Genesis

Nagarajan owns a small scale lathe workshop named Virgo Industry. The factory has been manufacturing accessory parts like aspirator, destoner, heat reducer and grinder used in the rice hulling units for the past 17 years. It operates from a very small and old rented house. Virgo Industry was founded by Nagarajan’s late father who used to provide support services to the nearby rice mills. But over the last few years, continuous drought affected not only the farmers but also all the dependent industries. Most of the rice mills in the nearby areas have closed down. These circumstances forced the entrepreneur to seek some other avenues for survival. Nagarajan’s close interaction with the pickle manufacturers exposed him to the problems prevailing in the industry. Some of the local pickle manufacturing companies requested him to design and develop a system to peel off garlic for making garlic pickles. Nagarajan successfully designed and developed a garlic-peeling machine in 2002 after two years of hard work. Later, he developed a lemon cutting machine as well.

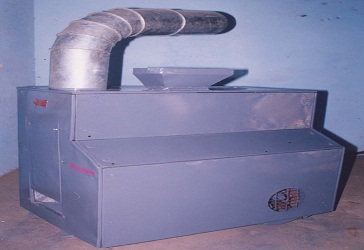

Garlic peeling machine

The garlic peeling machine consists of a 2 HP electric motor, blowers, a peeling chamber, inlet, outlet, exhaust pipe and drives. The peeling chamber has a provision for garlic inlet and a shaft on which the blades are arranged in such a manner that there are six rows and each row consists of four blades placed at an equiangular distance of 90 degrees. The blades are arranged in two consecutive rows. In one row, the blades intersect vertically and horizontally, and in the other row, the blades intersect diagonally. The peeling chamber is cylindrical and the internal walls are serrated. The drives consist of three shafts and pulleys and are transmitted with the use of V-belts. The machine consists of two blowers of different sizes. A housing, made of a steel sheet, covers the entire mechanism. The manufacturing cost of a single prototype is Rs.52,000 inclusive of labour charge and other running costs.

How the machine works

The garlic is fed into the peeling chamber through the inlet chute. Power is transmitted from the two HP motor shafts through V-belts. The pulley, fitted on the shaft, rotates the small blower. Pressurized air from the small blower removes the excess moisture from the garlic on the way to the peeling chamber. The cloves entering the peeling chamber are pushed by the pressurized air from the big blower to the rotating blade. The rotating blades hit the garlic cloves towards the serrated wall of the peeling chamber and there these get peeled. At the same time, the pressurized air from the big blower pushes out the dust and the skin of the garlic cloves through the exhaust pipe. The peeled garlic cloves from the peeling chamber are collected through the outlet by gravity.

Advantages

The machine has the capacity to peel 200 kg of garlic cloves/hr. The garlic cloves thus obtained are of uniform size and can be neatly and conveniently collected and recovered. Another feature of this machine is that it is easy to construct, operate, and maintain. The machine helps to achieve greater productivity, is energy efficient and labour saving and reduces the drudgery in the slow laborious manual process of peeling garlic. It can also be used in other food processing industries apart from the pickle industry.

NIF gave National award to him in Third Biennial Award Function. Innovator has sold more than 260 number of Garlic Peeling machines have been supplied.

 Patent Granted in Indian (No. 240633)

  • Peeling Capacity: 200 kg/hr
  • Manpower requirement: 2 laborers
  • Dimensions: 48” x 30” x 54”
  • Motor Power Required: 2 HP
  • Shaft rotating speed: 620 rpm
  • Feeding capacity: 3 kg
  • Weight: 250 kg
  • Body material: Food grade steel and MS steel
  • Neatly and conveniently collected and recovered

  • High productivity and Capacity – 200 kgs/hr
  • Better quality of peeled garlic, peeled garlic are of a uniform nature and are neatly and conveniently collected and recovered
  • It has wider application in pickle industry for preparing garlic paste and garlic powder
  • Energy efficient, labor efficient and higher productivity
  • Easy in operation and maintenance
  • Significant for industry where women are employed in huge numbers
